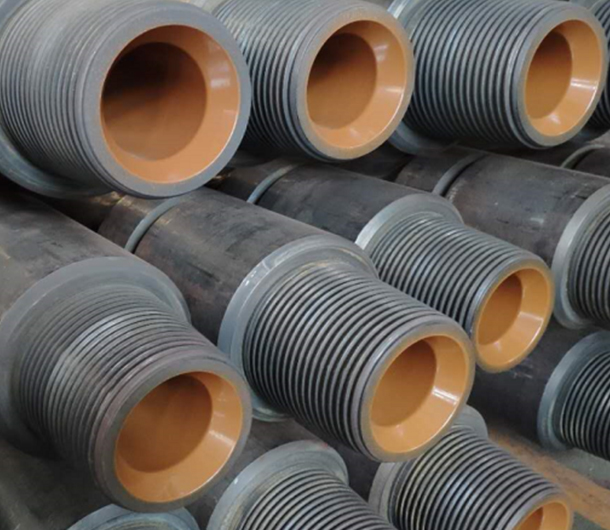

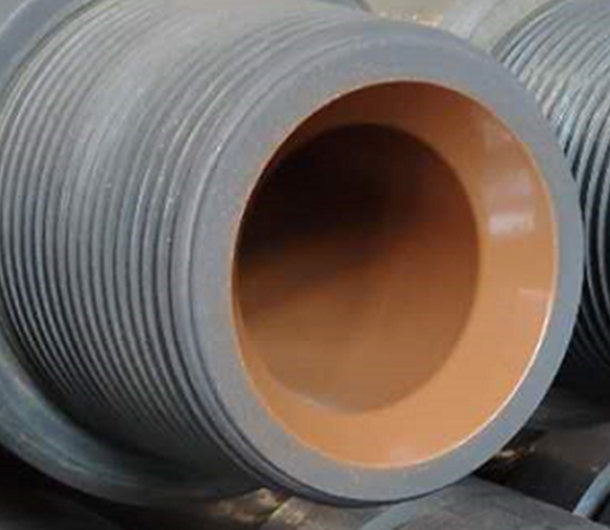

DC-DPC is a thermosetting epoxy powder coating for inner coater of pipeline. It meets with PC8007 red primer to make high-quality coating. The coating has excellent corrosion resistance, and is applicable to acid and alkaline media with wide pH range and wide temperature range, as well as corrosive media containing high CO2 and H2S. It is widely used in drill pipe, OCTG and chemical pipeline with high anti-corrosion requirements. The service life of the coated drill pipe is 3~5 times longer than that of the uncoated, and the fluid medium hydraulic efficiency is improved up 10~25%. Its thickness is generally more than 150 microns, and it is applicable to any use up to 150℃ (302 ° F) .
1.Technical Specifications
No.
Item
Specifications
Method
1)
Color
Grey
Visual
2)
Gel time（180°C）
80-180s
3)
Curing time
240°C, 60~90min
4)
Coating thickness
152~508um (6~20mil)
NACE TM0185-2006
5)
Service temperature
≤150 °C (302 ° F)
6)
Abrasion resistance
< 55 mg ，TABER Abraser
[CS-17,1kg,1000r]
ASTM D4060
7)
Impact resistance
2.5J
ISO 6272-1
8)
Adhesion
Pull-off test ：>20MPa
X cutting method ：5A
ASTM D3359
9)
Autoclave tests
No blistering, cracking, swelling or softening or loss of adhesion
Recommended Service
Benefits
OCTG（≤150°C）
Chemical or sewage pipeline and special valve
Oil gas / sewage / mining pipeline
<6% H2S pipeline
Acid transmission pipeline and fittings
Excellent corrosion resistance
Use Temperature up to 150°C
Wide pH range
Excellent adhesion
Excellent abrasion resistance
Strong resistance to H2S and CO2
Long service life
2. Features
