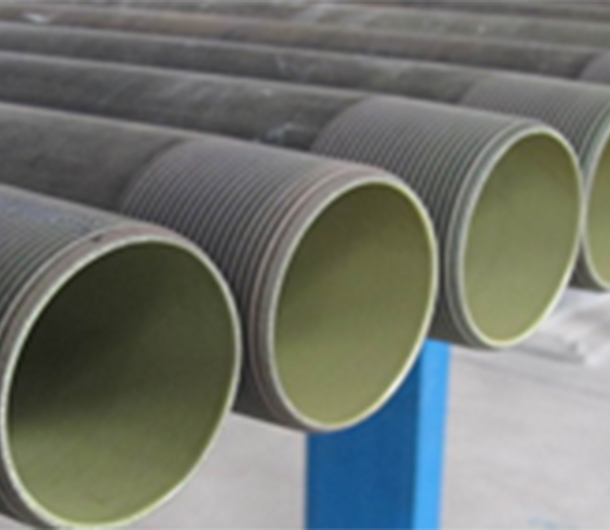

DC-149XT is a thermosetting epoxy powder coating for inner coater of pipeline. It meets with PC8006 red primer to make high-quality coating. The coating has excellent corrosion resistance and high abrasion resistant, and is applicable to acid and alkaline media with wide pH range and wide temperature range, as well as corrosive media containing CO2 and H2S. It is widely used in OCTG and chemical pipeline with high anti-corrosion requirements. Its thickness is generally more than 150 microns, and it is applicable to use up to 150℃ (302 ° F) .
1.Technical Specifications
No.
Item
Specifications
Method
1)
Color
Pink Green
Visual
2)
Gel time（180°C）
80-260s
3)
Curing time
240°C, 75~90min
4)
Coating thickness
152~508um (6~20mil)
NACE TM0185-2006
5)
Service temperature
≤150 °C (302 ° F)
6)
Abrasion resistance
< 35 mg ，TABER Abraser
[CS-17,1kg,1000r]
ASTM D4060
7)
Impact resistance
2.5J
ISO 6272-1
8)
Adhesion
Pull-off test ：>16 MPa
X cutting method ：5A
ASTM D3359
9)
Autoclave tests
No blistering, cracking, swelling or softening or loss of adhesion
Recommended Service
Benefits
OCTG（≤150°C）
Chemical or sewage pipeline and special valve
Oil gas / sewage / mining pipeline
Acid transmission pipeline and fittings
Excellent corrosion resistance
Use Temperature up to 150°C C
Wide pH range
Excellent adhesion
High abrasion resistant
2. Features
